I had posted this on another page, but turns out there's already a maintenance sub. Here's every fluid info on the entire car.
All part numbers for services and technical tidbits:
Oil filter (factory fit - only available in Japan) : 90915-10009
Oil filter (North America equivalent) : 90915-YZZM1 = 90915-YZZF2 = 90915-YZZN1 - all three supercede to the newest N1, some dealers may still have old stock as this is not a fast mover.
Oil filter (unconfirmed alternative bigger filter): 90915-YZZF1 - this is a common upgrade for 4A-GE's. Stock 4A-GE filter is the YZZF2 filter, but YZZF1 fits, longer by about 1cm = more filtering. Only limitation is fitment of the longer filter.
Drain plug gasket for engine: 90430-12031 - M12 double teflon coated aluminum
Rear diff drain and fill gaskets: 12157-10010 x2 - M18 ring/donut type
Transfer drain and fill gaskets: 12157-10010 x2
Transmission drain and fill gaskets: 90430-18008 or 90430-A0003 x2 - M18 aluminum flat
For what its worth, both Rear and Transfer drain plugs are magnet equipped. Both are 90341-18051, no need to replace every service.
Transmission oil: 08885-81007 x2 Toyota LV (w/LSD is 2L, but w/o LSD takes 2.1L, so might need more than 2)
Rear diff oil: 08885-02606 Toyota LX (half ish liter)
Transfer oil: 08885-02506 Toyota LT (half ish liter)
Oil (factory fill): 08880-13205 (4L can, you need more than one, spec is 4.3L with filter change)
Oil (Canada): C0BBA-0W2SN-1J (4.4L, API SP, which matches the ILSAC GF-6A req:
Oil Categories)

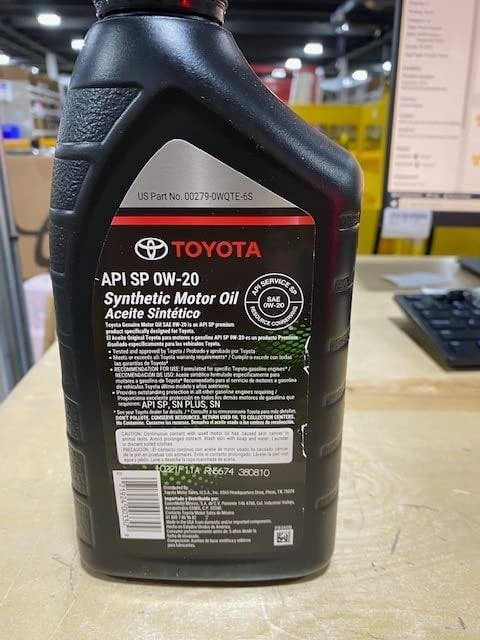

Oil (USA): 00279-0WQTE-6S (per quart) - this part number was also used for API SN Plus, but it should now be all API SP. Back of the bottle says if it is.
View attachment 6043
Here's the full service specs from Toyota docs:
SERVICE DATA
Brake Fluid (for Gasoline Model)
| for G16E-GTS | "TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6", FMVSS No.116 DOT4 or SAE J1704LV
*: If a fluid type with "TOYOTA GENUINE BRAKE FLUID DOT4, CLASS6", FMVSS No.116 DOT4 or SAE J1704LV is not available, fluid type with TOYOTA GENUINE BRAKE FLUID DOT3, FMVSS No.116 DOT3 or SAE J1703 may be used with no detriment to brake durability. |
| except G16E-GTS |
- SAE J1703 or FMVSS No. 116 DOT3
- SAE J1704 or FMVSS No. 116 DOT4
|
EA67F/EA68F Manual Transaxle Oil
| Standard Capacity | w/ LSD
2.0 liters (2.1 US qts, 1.8 Imp. qts) | Toyota Genuine Manual Transmission Gear Oil "LV GL-4 and SAE 75W" or "API GL-4 and SAE 75W" |
w/o LSD
2.1 liters (2.2 US qts, 1.8 Imp. qts) | | |
G16E-GTS Coolant
| CAPACITY | CLASSIFICATION |
|---|
| 5.7 liters (6.0 US qts, 5.0 Imp. qts) | TOYOTA vehicles are filled with TOYOTA SLLC at the factory. In order to avoid damaging the engine cooling system and other technical problems, only use TOYOTA SLLC or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology is a combination of low phosphates and organic acids). |
G16E-GTS Standard Engine Oil Grade
| OIL GRADE | OIL VISCOSITY (SAE) |
|---|
| ILSAC GF-6A multigrade engine oil | |
G16E-GTS Engine Oil Standard Capacity
| ITEM | STANDARD CONDITION |
|---|
| Drain and refill with oil filter change | 4.3 liters (4.5 US qts, 3.7 Imp. qts) |
| Drain and refill without oil filter change | 4.0 liters (4.2 US qts, 3.5 Imp. qts) |
| Dry fill | 5.1 liters (5.4 US qts, 4.5 Imp. qts) |
GF1A Transfer Oil
| OIL GRADE | VISCOSITY | STANDARD CAPACITY |
|---|
| Toyota genuine differential gear oil LT API GL-5 or equivalent | SAE 75W-85 | 0.40 to 0.50 liters (0.43 to 0.52 US qts, 0.36 to 0.44 Imp.qts) |
Differential Oil
�
| OIL GRADE | STANDARD CAPACITY |
|---|
| *: Using differential gear oil other than the specified oil may cause abnormal noise orvibration, or damage the differential gear of your vehicle. | |
| Toyota Genuine Differential gear oil LX 75W-85 GL-5 or equivalent* | 0.45 to 0.55 liters (0.48 to 0.58 US qts, 0.40 to 0.48 Imp. qts.) |
